NexGen Newsletter - Spring 2009

NexGen Ergonomics Inc. continues to expand its world leading product line with several new and updated products for ergonomic analysis, design and research, biomechanics and medical applications. Information can be found at our website in both our News and Products sections.
Ergonomics Products:
Medical Products:

Ergonomics and Biomechanics Products

Human Modeling Software Solutions


HumanCAD 1.2 was released in the 1st quarter. New features include:

  • CAD-Exchange module: the STEP & IGES files import process can now be cancelled

  • Enhanced precision for Presets and Semi automatic scaling of mannequins

Also, various bug updates are also included.

Customers are reminded to check for updates if on maintenance.

We wish to remind customers who wish to upgrade to HumanCAD that upgrade credits are available to customers of ManneQuinPRO Versions 7 through 10.2, ManneQuinBE and ManneQuinELITE. The value of these credits was reduced December 31, 2008 and is reduced December 31st of every year.

Learn more at:

AnyBody Modeling System™

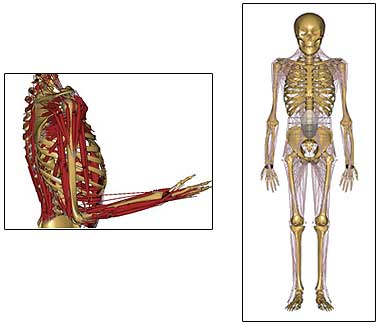

Release of the AnyBody Modeling System™ Version 4
AnyBody Technology is proud to release Version 4 of the AnyBody Modeling System. Below are two descriptions of the main developments in Version 4, the muscle recruitment algorithms, and the graphical user interface including Model View.

Improved Muscle Recruitment
In biomechanics, inverse dynamics is traditionally understood at the process of computing from measured ground reaction forces in a gait analysis to net moments in the anatomical joints. However in AnyBody context, inverse dynamics is much more than that. In brief, inverse dynamics allows you to simulate muscle and joint forces in the entire body undergoing complex movements, taking dynamic inertia forces in to account, and not necessarily requiring measured forces in the interface between the body and the environment.

Key to this when working with AnyBody's sophisticated model is the muscle recruitment methodology which has been completely reworked in the new version 4.

Improved Graphics and Interface
The key feature in the new Model View is that interaction with the model appearance in the Model View is now possible. In the first release of this it allows simple manipulations without acting through drawing objects in the AnyScript code.

AnyBody is Officially Supporting C3D Format
AnyBody is now officially supporting the C3D format. C3D is "...a public domain, binary file format that is used in Biomechanics, Animation and Gait Analysis laboratories to record synchronized 3D and analog data. It is supported by all 3D major Motion Capture System manufacturers, as well as other companies in the Biomechanics, Motion Capture and Animation Industries."

Learn more at:

Ergonomic Job Analysis Software Solutions

Xsens Technologies

New MVN Mounting Straps

These straps designed as an alternative to the MVN suit for some applications can also be used for Xbus kit customers, but are restricted to the MVN set up. Please contact us for technical information to see if they can be applied to your application/usage.

New MVN Suit Design

The new suit greatly improves the quality of the motion capture data. The improvements:

  • Improved mocap of shoulders and spine
  • Improved sensor position stability
  • Improved comfort and cleanliness
  • Easier to put on and wear
  • Advanced sensor click-in system

MVN Studio 2.6

We are glad to inform you about a new version of MVN Studio (formerly known as Moven Studio). MVN Studio 2.6 upgrade includes the following new features:

  • Multiple actor streaming: Real time streaming of multiple actors to third party applications, such as MotionBuilder
  • LXsolver: Laxity solver for more robust performance on the exporters i.e. .BVH, .FBX
  • Save and load calibrations
  • New Time code and Remote control plug-in: Plug-in accepting external time code source and ability to remote control MVN Studio

This upgrade is available to all clients. Xsens will be introducing a more formal contract in the near future covering future updates.

Learn more at:

Biometrics Ltd. Products

Up to 4 DataLOG units can be synchronized providing 32 channels in wireless mode.

Learn more at:

New EMG Sensor:
New EMG sensor SX230-1000, lower profile. See:

New Version 7.5 Analyses software is Vista compatible for both DataLOG and DataLINK and contains many new features.

Ametek/Chatillon Products

Effective January 1, 2009 the MSC and FCE models have been discontinued. New kit configurations for the DFX and DFE models have been released. These are identified as the K-DFX and K-DFE products.

Chatillon TCD WEDGE Software for E-DFE, DFS, DFS-R, DFS-R-ND Series. TCD WEDGE is a software utility that provides direct communication between any of the above Chatillon products, to a personal computer operating Microsoft Excel (must be 2003 or higher).

Mark-10 Products

Ergonomics Testing Kits Series MKB
These new kits include the BG digital force gauge and make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, physical therapy, and ergonomic studies. These kits present the ergonomist and other professionals with a simple and economical testing solution.

Learn more at:

CTA Cap Torque Testers
Series CTA Cap Torque Testers present a simple, accurate, and economical solution for manual cap torque testing. These cap torque testers are ideal for lab or production use for closure manufacturers, bottlers, food and beverage companies, and others.

The cap torque tester captures peak readings for application and removal torques. Data output via RS-232 and Mitutoyo enable reporting and analysis of test data via PC or other data collector. Adjustable posts effectively grip a broad range of container shapes and sizes, while a set of flat rubber-edged jaws are available for unique profiles. Innovative mechanical overload protection provides peace of mind.

Learn more at:

Medical Products

Jamar Products

New Jamar Plus+ Digital Hand Dynamometer

Sturdy aluminum body construction with scratch resistant UV coating. The readout displays isometric grip force from 0- 200 lbs. (90 kg.). The unit's easy-to-read LCD display can be set to display pounds or kilograms. The dynamometer also features digital load cell technology.

Learn more at:

O2 Analyzer

Drive Check & Go Disposable O2 Analyzer


  • 3-digit LCD display
  • o Ultra light weight & stableo Comfortable handheld design
  • o Maintenance free
  • o Extended battery life
  • o Easy calibration
  • o Auto Off

Learn more at:

Thought Technology

New Z-Score Mini-Suite and 4 Channel EEG Connectivity Kit

The Z-Score Mini-Suite and 4 channel EEG connectivity kit provide the elegant solution for your 2 or 4 channel Z-Score assessment and training. Individual z-scores, metrics describing the overall state of a number of z-scores, as well as z-score with standard EEG band amplitudes in parallel. Z-Score Add-on CD (SA7901) is required to get Z-Score values from Dr. Thatcher's normative database.

Z-Score Mini-Suite features:

  • Quick Start Favorites are pre-defined for you to use. Start a session, review and report with a single click. Even a desktop icon!
  • Quick, easy interface for z-score settings and thresholds. Right click and use graphical interface to easily select all z-score parameters.
  • Assessment scripts for eyes open and eyes closed baseline.
  • "Live training" based on Thatcher normative database
  • Feedback training using individual z-scores, any combination of z-scores or z-scores in parallel with standard EEG frequency bands.
  • Benefit from real-time trend graphs to obtain instantaneous measure of progress for all protocols.
  • Standard feedback tools including DVD playback, AVI animations and single and dual screen configuration.
  • Simple reports include means and trends for z-score, z-score metrics and EEG amplitudes for all sessions.
  • For the same session, reports can be obtained simultaneously on all z-scores, standard EEG bands, and all z-score metrics. View trend graphs of epoch means as well as full session means.
  • Ready for 2 and/or 4 channel functionality
  • Feedback based on many choices of variables:
  • Single z-score (can be modified on the fly)
    • Z-scores index (proportion of z-scores within condition)
    • Other z-score indices: connectivity, powers, power ratios
    • Create your own index using a programmable combinations of z-scores (can be modified on the fly)

The suite takes advantage of the full power of BioGraph Infiniti v5.0 by using the Quick Start favorites, which allow you to start a session, review, report and analyze statistics with the click of a single button or even a desktop shortcut. Just one simple click to run any of the 10 Quick Start Favorites:

This mini-suite will allow the user to perform assessment and training with these variables and indices:

  • 6 Metrics: Relative Power; Absolute Power; Power Ratios; Coherence; Phase; Amplitude Asymmetry
  • 8 Bands: Delta; Theta; Alpha; Beta; High Beta; Beta 1; Beta 2; Beta 3
  • 10 Band Ratios: Delta/Theta; Delta/Alpha; Delta/Beta; Delta/High Beta; Theta/Alpha; Theta/Beta; Theta/High Beta; Alpha/Beta; Alpha/High Beta; Beta/High Beta
  • Z score index (includes all z-scores)
  • Z score Powers index (includes only the power z-scores, for all channels)
  • Z score Power Ratios index (includes only the power ratio z-scores, for all channels)
  • Z score Connectivity index (includes only the coherence, phase and amplitude asymmetry z-scores, for all channel pairs).
  • Create your own Index using programmable combination of Z-scores (can be modifed on the fly).

Ideal for 2 or 4 channel Z Score or any other multiple channel EEG applications, this kit includes the necessary cables to measure up to 4 channel EEG with common reference and ground, which is required when working with connectivity or other multiple-channel EEG protocols.

This kit contains the following components:

  • 1 - SA9323 TT-EEG gold cup cable - black
  • 2 - SA9315-4 1M4F Y-connector
  • 1 - SA9319 2M1F Y-connector

Features of the 4 Channel Connectivity Kit:

  • Our most flexible TT-EEG kit. Used in combination with four TT-EEG Monopolar/Bipolar Electrode kits.
  • Connect 1, 2, 3, or 4 monopolar or bipolar channels, with the same reference for all channels.
  • Choose between linked ear or single ear reference, and between ear clip or cup electrode active ground.

Please note that the 4 Channel Connectivity Kit should be used in conjunction with up to 4 EEG sensors and 4 monopolar/bipolar kits (T8750). Each EEG sensor includes one T8750 kit.

A full Z-Score system requires:

  • A ProComp2, ProComp5, ProComp Infiniti or FlexComp Infiniti with BioGraph Infiniti 5.0
  • Z-Score Mini Suite (SA7962)
  • Z-Score add-on CD with Dr. Thatcher's normative database (SA7901)
  • 2 or 4 EEG-Z sensors (T9305Z)
  • A 2-channel (T8760) or 4-channel (T8761) connectivity kit

New MyoScan-Z EMG Sensor

Designed for a sampling rate of 2048 samples per second, this new EMG sensor offers an unique impedance check mode, which can be triggered from BioGraph Infiniti software. It measures raw EMG signals with a range from 0 up to 2000 micro-Volts. MyoScan-Z makes impedance check fast, easy and reliable, and avoids risk of cable misplacement. It monitors skin impedance and sensor connection.

Benefits of impedance check:

  • Good contact between the electrodes and the skin is required to have a good quality signal and prevent artifacts.
  • Measuring the impedance between the electrodes is the recommended way to verify good contact. It is simple, fast and accurate.
  • It shows instantaneously which electrode is not properly connected or which part of the skin is not well prepared.

Impedance check is usually performed with an impedance meter. When you use a regular impedance meter, you have to:

  • interrupt the session
  • disconnect the cables
  • connect the meter to each site and measure them one by one
  • reconnect the cables (at the right place)
  • restart the session
  • And this, every time you need to verify the impedance!

With MyoScan-Z, you can get it done in 3 clicks:

  • pause the session
  • run the impedance check simultaneously on all the sites without disconnecting any cable
  • unpause the session

Also see real-time results in a glance with the color-coding:

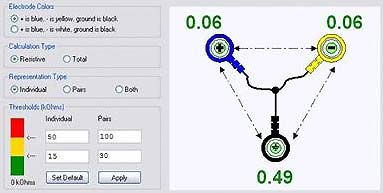

BioGraph Infiniti - Impedance Check Screen

Thought Technology is the only manufacturer providing EMG sensors with built-in impedance check.

(For use with the ProComp/Procomp5 Infiniti channels A - B or all FlexComp-Infiniti channels.)

Learn more at:

New EKG Wrist Straps with Artifact-Proof Algorithm

Wrist straps now available with EKG (electrocardiogram) sensor for easy and convenient wrist placement.

  • Wrist placement is faster and eliminates the problem of undressing.
  • Wrist straps with silver/silver-chloride electrodes are reusable, saving money.
  • The new advanced IBI from EKG algorithm implemented in BioGraph Infiniti 5.0 (required software) virtually eliminates movement and EMG artifacts.

Learn more at:

New BioGraph Infiniti Version 5.0

BioGraph Infiniti version 5.0 has enhanced compatibility with Windows Vista and comes with many new features and new functions. BioGraph Infiniti version 4.0 owners are entitled to a free downloadable upgrade to version 5.0. The upgrade cost is US$200 for owners of BioGraph Infiniti 3.1.5 or earlier versions.

Major New Features of 5.0 Version:

  • Favorites & Quick Start: Launching your favorite screens or scripts has never been so fast and so easy. Simply select a favorite from either your favorite folder, Quick Start button, or even a desktop icon.
  • Quick and Easy Change of animation, sounds, threshold options and text of your screen with just one right-click directly from the recording screen.
  • Enhanced Compatibility with Windows Vista
  • Two Webcams and Audio Recording: Record live video and audio from 2 separate webcams and play them back with synchronization of psycho-physiology signals. Ideal for couple counselling.
  • Instant saving of video, with the ability to jump to any event markers. This facilitates easy review of clinical interactions or other events aligned with the body responses.
  • The live video images can also be controlled by subject responses in 4 actions: on/off, blurry/clearer, brighter/normal or darker/normal. BioGraph is the only software on market that has this unique function.
  • Improved DVD feedback: Automatic insertion of a Bookmark in DVD movie when a session is ended, so the next session will re-start the movie at that location.
  • Improved MIDI Options and Binaural beat Audio Feedback
  • Heart Rate Variability: pNN50 Computation and HRV Resonant frequency Detection as well as Pulse transit time (delay between EKG R-spike and finger pulse)
  • New Advanced EKG Algorithm: avoids artifacts from heavy movement and EMG interference, provides more accurate R spike detection and minimizes the number of artifacts from missed or extra beats.

New Features for Developers:

These features are not yet included in an application suite (coming soon), but they are available to those who use developer tools to design their own channel sets and screens.

  • New Flash Animations: Easily add and use any flash animations as an option to AVI or DVD visual feedback.
  • Dual Threshold on Line Graphs: Provide inside/outside type of visual and auditory feedback.
  • Z score - 4 channels: Perform 2 or 4 channel Z score neurofeedback. Train from norms on-the-fly, and give feedback based on a "percentage of z-score in condition", or do pre- and post-session assessments. Metrics include Absolute Power, Relative Power, Power Ratio, Coherence, Phase Difference and Amplitude Asymmetry. (Z Score add-on CD required)
  • Low Frequency & SCP: Train low frequency or Slow Cortical Potentials using our new EEG-Z3 sensor. (EEG-Z3 and AV Sync sensors required)
  • New Left-Right Multi Bargraph instrument: for one or two EEG channels, allows you to easily and rapidly define up to 32 bands of EEG training.
  • Programmable Respiration Pacer: with automatic pacing from the starting to target rate over a chosen time, by either respiration cycle timing in seconds or % of cycle. A Child Respiration Pacer can also be added to the second monitor. Any setting changes clinician makes on main monitor are mirrored on the second monitor.
  • Poincaré Plot on Lissajous Instrument plots each IBI value against the previous one.
  • MyoScan-Z, the new unique EMG sensor with impedance checking: BioGraph Infiniti 5.0 supports this new sensor! (Myoscan-Z sensor required)

Learn more at:

New Rehab Suite

The newest suite from Thought Technology has been released for the ProComp Infiniti, ProComp 5, and FlexComp. This suite cannot be used with ProComp2 (or with MyoTrac Infiniti, which has its own Rehab Suite). Various new sensors to be used with this suite.

It includes an extensive clinical guide and screens for:

  • SEMG assessment (general, static and dynamic)
  • SEMG biofeedback training
  • Range of motion assessment (static and dynamic)
  • Range of motion therapy with biofeedback
  • Manual muscle testing
  • Algometry
  • Respiration training with biofeedback (general health, relaxation, breathing during effort)
  • Heart rate monitoring and heart rate variability
  • Skin Conductance & Temperature Biofeedback

Learn more at:

New Voltage Isolator 4 Infiniti

The Voltage Isolator 4 Infiniti (T9405MA) is an interface device which provides electrical isolation and allows a ProComp Infiniti or FlexComp Infiniti system to be safely interfaced with analog outputs of line-powered systems, such as:

  • Computers with DAC cards
  • Isokinetic dynamometers (e.g. Biodex)
  • Force platforms
  • Blood pressure monitors
  • SPO2 monitors
  • And more...

Learn more at:
