Grips and Attachments

Mark-10 grips and attachments are integral components of testing systems, designed for a wide range of tension, compression, and torque applications. These grips and attachments are able to mount to Mark-10 force gauges, torque gauges, sensors, and test stands.

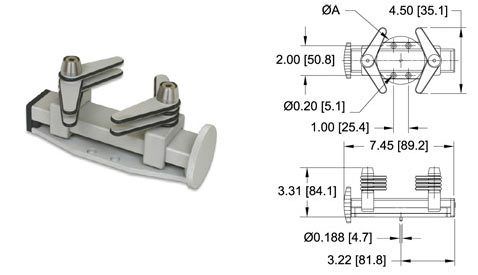

Bottle Grip

This unique grip is designed for securing bottles, containers, and other items for closure torque testing. Eight rubber edged gripping arms effectively grip a wide range of sample shapes and sizes and can be individually positioned at angles of up to 180°. The G1023 mounts directly to the TST, TSTH, TSTM, and TSTMH Torque Measurement Test Stands. The grip may also be mounted to a force measurement stand to secure closures in such applications as top load testing.

Model Numbers & Specifications

Model Cap.
lbin [Nm]
Weight lb
[kg]
ØA
G1023 100
[11.3]
1.50
[0.7]
4.80
[122.0] MAX

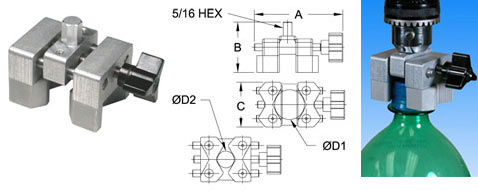

Cap Grip

This grip effectively secures bottle caps during torque testing. The G1053 is designed with a hex tail to fit into the chucks of our torque sensors. Reversible serrated jaws accommodate caps with diameters of 0.65 - 1.80 in [16.5 - 45.7 mm] while a knob quickly engages and disengages samples.

This grip can be used either manually with an STJ torque sensor or MGT torque gauge, or in test stand controlled applications, using our Series TST torque test stands. If used with a test stand, this grip complements our G1023 bottle grip.

Model Numbers & Specifications

Model Cap.
lbin [Nm]
Weight lb
[kg]
A B C ØD1* ØD2*
G1053 100
[11.3]
0.39
[0.18]
3.1
[78.7]
2.0
[50.8]
1.6
[40.6]
1.16-1.80
[29.5-45.7]
0.65-1.29
[16.5-32.8]
* Jaws must be reversed to switch from ØD1 to ØD2

Clevis Grip

This grip is designed for ergonomic assessment, spring testing, and other pull testing applications. A spring loaded pin with ball plunger locks into place, for added safety during testing. Included with all Mark-10 ergonomics testing kits.

Model Numbers & Specifications

Model Cap. lbF
[N]
Weight lb
[kg]
A B C ØD E
G1077 500
[2200]
0.29
[0.13]
1.70
[43.2]
1.25
[31.8]
0.38
[9.7]
0.85
[21.6]
1.45
[36.8]
Includes a 5/16-18M to #10-32F thread adapter, 5/16-18 M/M stud with jam nuts, and #10-32 M/M stud with jam nuts

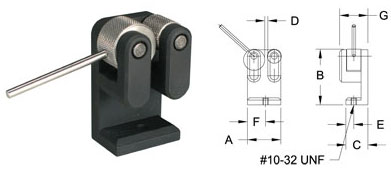

Dual Roller Grip

This cam grip secures the ends of wire, cable, and tubing samples for pull testing. Engaging and disengaging samples is quick and easy, with a side slot for sample insertion and serrated steel rollers. Use this grip with a G1001 wire terminal grip, force gauge, and test stand to create a complete terminal and crimp testing system.

Model Numbers & Specifications

Model Cap. lb
[N]
Weight lb
[kg]
A B C D E F G
G1002 200
[1000]
0.19
[0.09]
1.18
[30.0]
2.00
[50.8]
0.75
[19.1]
0-0.25
[0-6.3]
0.25
[6.4]
0.64
[16.3]
1.0
[25.4]

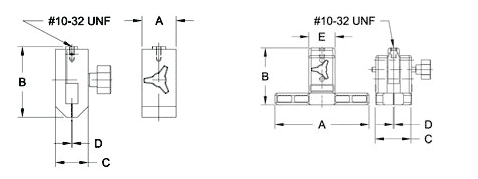

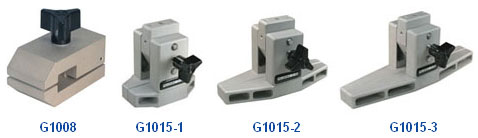

Film & Paper Grips

These grips are designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 100 lb of force. The grips are available in four sizes: 1", 3", 5", and 7". Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Cap. lb
[N]
Weight lb
[kg]
A B C D
G1008 200
[1000]
0.31
[0.14]
1.00
[25.4]
2.50
[63.5]
1.60
[40.6]
0-0.15
[0-3.8]
G1015-1 0.57
[0.26]
3.00
[76.2]
3.00
[76.2]
1.90
[48.3]
0-0.50
[0-12.7]
G1015-2 0.67
[0.30]
5.00
[127.0]
G1015-3 0.77
[0.35]
7.00
[177.8]

Jacobs Chuck Grips for TST

These grips are designed for gripping samples during torque testing, for use with TST, TSTH, TSTM, and TSTMH Torque Measurement Test Stands. Available in three chuck capacities. Includes key.

Model Numbers & Specifications

Model Cap.
lbin [Nm]
Weight lb
[kg]
ØB ØC
G1022-1 100
[11.3]
0.50
[0.23]
0.188
[4.7]
0.028-0.250
[0.7-6.3]
G1022-2 0.062-0.375
[1.6-9.5]
G1022-3 0.078-0.500
[2-12.7]

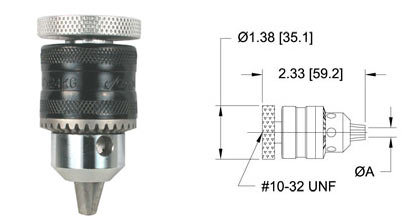

Jacobs Chuck Pin Vise

This grip is suitable for holding round samples such as wire or tubing up to 0.375" dia. It can mount to any force gauge or test stand. Includes key.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
ØA
G1010 30 lb
[150 N]
0.35
[0.16]
0.062-0.375
[1.6-9.5]

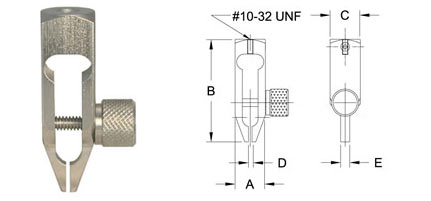

Miniature Component Grip

This slender grip is ideal for testing small and hard-to-reach parts, such as electronic mechanical components. Use this grip with a force gauge and test stand to create a complete testing system.

Model Numbers & Specifications

Model Cap. lb
[kN]
Weight lb
[kg]
A B C D E
G1003 30
[150]
0.05
[0.02]
0.5
[12.7]
1.7
[43.2]
0.5
[12.7]
0-0.07
[0-1.8]
0.15
[3.8]

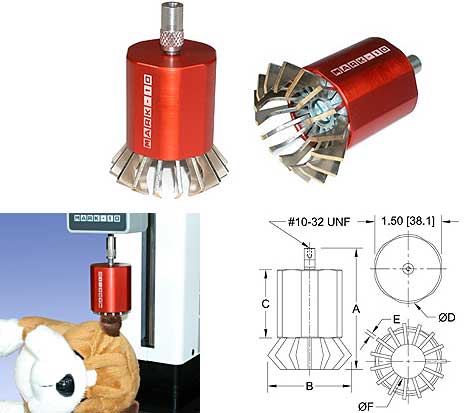

Multi-Jaw Grip

This unique and universal grip is designed for gripping round and irregularly shaped items. Adjustable jaws accommodate a range of sample shapes and sizes. Rotate the housing to open and close the jaws. Typical applications including pull-off tests of fasteners and components in the toy, clothing, and other industries.

Model Numbers & Specifications

Model Cap. lb
[N]
Weight lb
[kg]
A B Max. C ØD E ØF
G1056 100
[500]
0.30
[0.14]
3.50
[88.9]
2.30
[58.4]
1.63
[41.4]
1.55
[39.4]
0.075
[1.91]
0.40-1.60
[10.2-40.6]

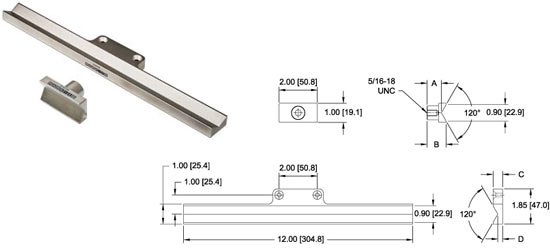

Opening Force Fixture

Used to determine the opening force of flat folded cartons along their score lines. Ideal for numerous applications in the packaging, food and beverage, medical device, consumer products, and many other industries. Upper and lower fixtures are easily removable.

Use this grip with a choice of test stand and force gauge to create a complete opening force testing system.

Features & Specifications

  • Set of upper lower dies provided to accommodate various sized packaging materials
  • Fixtures are easily removable
  • Maximum force: 50 lbF (250 N)
  • Mounts directly to Mark-10 test stands (when ordered with optional 14-1068 mounting plate). A motorized test stand is recommended.
  • Weight: Upper die:0.10 lb [0.05 kg], Lowe die:0.06 lb [0.03 kg]

Model Numbers & Specifications

Model Description
G1072 Opening force fixture set

Upper die includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts. Lower die includes mounting hardware for Mark-10 test stands.

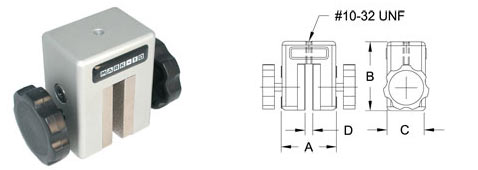

Parallel Jaw Grip

This grip is ideal for general pull testing applications. Manually tightened serrated jaws may be individually adjusted for samples up to 0.25" thick. Use this grip with a Mark-10 force gauge and test stand to create a complete testing system.

Model Numbers & Specifications

Model Cap. lb
[N]
Weight lb
[kg]
A B C D
G1013 200
[1000]
0.65
[0.29]
.75
[44.5]
2.25
[57.2]
1.25
[31.8]
0-0.25
[0-6.3]

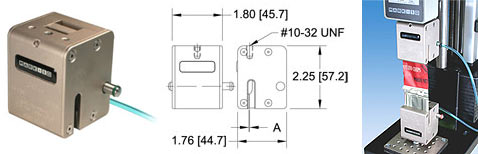

Pneumatic Grip

This fully enclosed, air-powered grip is ideal for seal strength testing of packaging, elongation testing of various materials, and other tensile testing requirements. Serrated interlocking jaws effectively grip samples for up to 100 lb of force.

The grip features an industry-unique integrated open/close valve for quick sample engagement and disengagement, an added benefit for repetitive applications. An air connection kit, consisting of air tubing and fittings, is available as an option. Use a pair of these pneumatic grips with a force gauge and a test stand to create a complete testing system.

Features

  • Integrated open/close valve
  • Fully enclosed design for safety

Model Numbers & Specifications

Model Cap.
lb [N] / PSI [MPa]
Weight lb
[kg]
Max. pressure PSI
(MPa)
Air input thread A
G1046 100 [500] @
100 [0.86]
0.58
[0.26]
125
[0.86]
#10-32 UNF 0-0.13
[0-3.3]

Optional Equipment

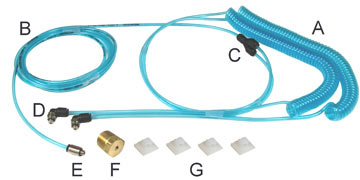

Air Connection Kit - AC1019
Consists of a complete set of components needed to connect two pneumatic grips:

  1. Coiled tubing, 1/8" OD, 1/16" ID, 8" retracted length (qty. 2)
  2. Straight tubing, 1/8" OD, 1/16" ID, 5' length (qty. 1)
  3. Y-splitter (qty. 1)
  4. Elbow fitting, tubing to #10-32M (qty. 1)
  5. Straight fitting, tubing to #10-32M (qty. 1)
  6. Thread adapter, #10-32F to 1/4" NPT M (qty. 1)
  7. Adhesive-backed guide (qty. 4)

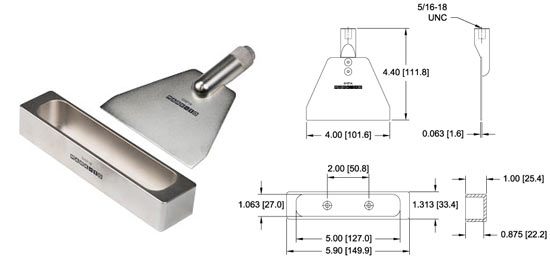

Score Bend Fixture (TAPPI T829)

This set of fixtures is used to produce a 90° bend in fiber board materials and plastics. The fixtures are compliant to TAPPI standard T829 for evaluating the relative quality of scores in corrugated containers. Upper and lower fixtures are easily removable.

Use this fixture with a choice of test stand and force gauge to create a complete score bend testing system.

Note: These fixtures are designed for compatibility with a Mark-10 force gauge and test stand. The resulting value displayed on the force gauge will be a force value. The abstract score ratio as called for in T829 is not automatically calculated.

Features & Specifications

  • Set of upper and lower dies produce 90° bend in corrugated board and plastics
  • Meets the requirements of TAPPI T829
  • Fixtures are easily removable
  • Maximum force: 50 lbF (250 N)
  • Mounts directly to Mark-10 test stands (when ordered with optional 14-1068 mounting plate). A motorized test stand is required to fufill the test speed requirement of TAPPI T829.
  • Weight: Upper die 0.15 lb [0.07 kg], Lower die: 0.30 lb [0.14 kg]

Model Numbers & Specifications

Model Description
G1071 Score bend fixture set

Upper die includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts. Lower die includes mounting hardware for Mark-10 test stands.

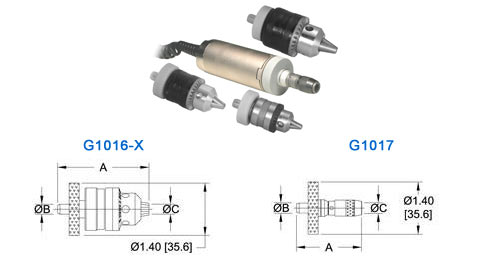

Torque Sensor Attachments Series STH

These attachments mount directly to Series STH torque sensors for various torque measurement applications. Select a size appropriate for your sample.

Model Numbers & Specifications

Model Weight lb
[kg]
Capacity lbin
[Nm]
A ØB ØC
G1016-1 100
[11.3]
0.26
[0.12]
2.90
[73.7]
0.188
[4.7]
0.028-0.250
[0.7-6.3]
G1016-2 0.36
[0.16]
3.16
[80.3]
0.062-0.375
[1.6-9.5]
G1016-3 0.67
[0.30]
3.73
[94.7]
0.078-0.500
[2-12.7]
G1017 0.11
[0.05]
2.33
[59.2]
1/4" hex

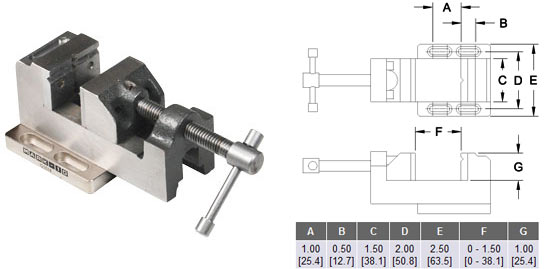

Vise Grip (Standard)

This general purpose vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF.

Use this grip with a choice of test stand and force gauge to create a complete testing system.

See also the G1070 self-centering vise grip which offers smooth removable jaws and can be field-modified to improve sample gripping characteristics as required for pull testing applications.

Features & Specifications

  • Maximum tension force: 500 lbF (2500 N)
  • For general tension and compression testing applications
  • Mounts directly to Mark-10 test stands (when ordered with optional 14-1068 mounting plate)
  • Weight: 2.0 lb (1.0 kg)

Model Numbers & Specifications

Model Description
G1074 Vise grip, standard

Includes four (4) screws and an adapter for mounting to Mark-10 test stands.

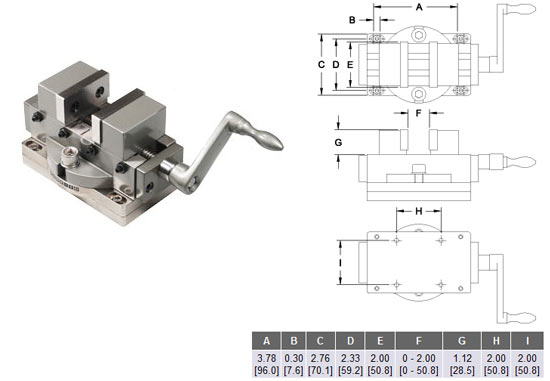

Vise Grip (Self-Centering)

This general purpose self-centering vise can be used in a wide range of tension and compression testing applications. Wide opening range accommodates large and unique samples. Rugged design permits testing up to 500 lbF. Smooth removable jaws can be field-modified to improve sample gripping characteristics as required for pull testing applications.

Use this grip with a choice of test stand and force gauge to create a complete testing system.

Features & Specifications

  • Maximum tension force: 500 lbF (2500 N)
  • Removable jaws
  • Celf-centering design
  • Ergonomic lever
  • Mounts directly to Mark-10 test stands (when ordered with optional 14-1068 mounting plate)
  • Weight: 5.85 lb [2.65 kg]

Model Numbers & Specifications

Model Description
G1070 Vise grip, self-centering

Includes four (4) screws and an adapter for mounting to Mark-10 test stands.

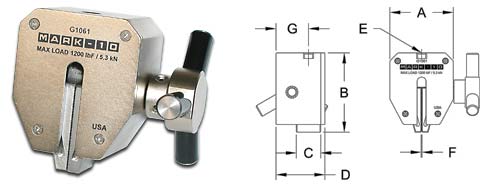

Wedge Grip

This heavy duty self-tightening grip with a capacity of 1200 lb (5.3 kN) is ideal for a range of tensile testing requirements. The serrated steel jaws are easily opened with an ergonomic spring loaded knob and rack and pinion type mechanism. The jaws ride on rollers instead of sliding along the surface of the housing, as with conventional wedge grips. This unique design prevents jamming and improves gripping characteristics. Use this grip with a test stand and force gauge to create a complete testing system.

  • 1200 lb [5.3 kN] capacity
  • Unique jam-free design
  • Fully enclosed
  • Hardened, serrated steel jaws
  • Thru slot for samples of unlimited width
  • Ergonomic handle
  • Weight: 0.80 lb [0.36 kg]
  • Jaw material / hardness: 416 SS / 43 RC

Model Numbers & Specifications

Model Cap. lb
[kN]
Weight lb
[kg]
A B C D E F G
G1061 1200
[5.3]
0.80
[0.36]
1.95
[49.5]
2.45
[62.2]
0.75
[19.1]
1.50
[38.1]
5/16-18 UNC 0-0.25
[0-6.4]
1.0
[25.4]

Replaces models G1012 and G1012-1. The G1061 is supplied with a 5/16-18M to #10-32F thread adapter (part no. G1030). Can be used with optional swivel adapters (G1018-1 and G1018-2, see below) to provide proper sample alignment in pull testing applications.

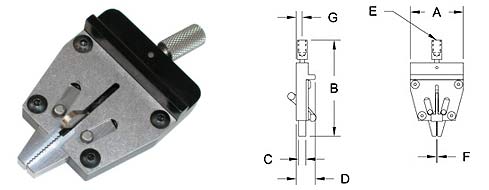

Miniature Wedge Grip

This compact self-tightening grip with a capacity of 100 lb (500 N) is ideal for a range of low force tensile testing of small samples. The serrated steel jaws are easily opened with a spring-loaded lever. Use this grip with a test stand and force gauge to create a complete testing system.

  • 100 lb [500 N] capacity
  • Spring-loaded lever
  • Serrated steel jaws
  • Swiveling mounting attachment
  • Thru slot for samples of unlimited width
  • Weight: 0.08 lb [0.04 kg]
  • Jaw material: 303 SS

Model Numbers & Specifications

Model Cap. lb
[N]
Weight lb
[kg]
A B C D E F G
G1062 100
[500]
0.08
[0.04]
1.37
[34.8]
2.49
[63.1]
0.19
[4.8]
0.49
[12.4]
#10-32 UNF 0-0.16
[0-4.0]
0.15
[3.9]

The G1062 is supplied with a #10-32 stud.

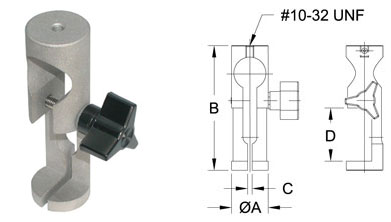

Wire Terminal Grips

These grips are designed for securing wire terminals, cables, connectors, and other samples for pull testing. Three wire diameter capacities are available: 0.125", 0.25", and 0.375". Use these grips with the G1002 dual roller grip, and choice of test stands and force gauges to create complete terminal and crimp testing systems.

Model Numbers & Specifications

Model Cap. lb [N] Weight lb [kg] ØA B C D
G1001 200
[1000]
0.29
[0.13]
1.00
[25.4]
3.40
[86.4]
0-0.125 [0-3.1] 1.45
[36.8]
G1001-1 0.125-0.25 [3.1-6.3]
G1001-2 0.25-0.375 [6.3-9.5]

Wire Terminal Grip (Turret-style)

This grip is designed for securing wire terminals, cables, connectors, and other samples for pull testing. Grooves of multiple sizes are provided to accommodate a wide range of wire diameters up to 0.25 in. (6.3 mm). Simply rotate the turret wheel to the desired size. Integrated magnets hold the wheel in place to help prevent accidental rotation to a different sized groove.

Use this grip with the G1002 dual roller grip, and choice of test stands and force gauges to create a complete terminal and crimp testing system.

Features & Specifications

  • Wire diameter range: 0 - 0.25 in (6.3 mm)
  • Groove sizes [in(mm)]: 0.03 (0.7), 0.04 (1.0), 0.06 (1.5), 0.08 (2.0), 0.09 (2.3), 0.11 (2.8), 0.12 (3.0), 0.14 (3.5), 0.15 (3.8), 0.17 (4.3), 0.18 (4.5), 0.20 (5.1), 0.21 (5.3), 0.23 (5.8), 0.25 (6.3)
  • Rugged design
  • Capacity: 200 lbF (1000 N)
  • Weight: 1.0 lb (0.45 kg)

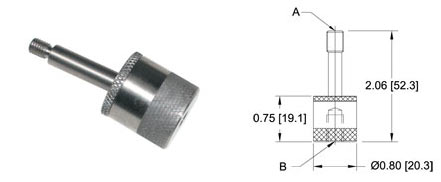

  • Optional swivel adapter provides proper sample alignment in pull testing applications

Model Numbers & Specifications

Model Description
G1076 Wire terminal grip, 0 - 0.25"
G1018-1 Swivel adapter, #10-32
G1018-2 Swivel adapter, 5/16-18

Includes a 5/16-18M to #10-32F thread adapter and #10-32 M/M stud with jam nuts.

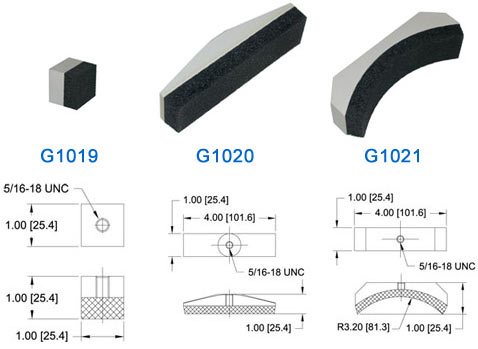

Ergonomic Padded Attachments

These ergonomic padded attachments are designed for testing muscle strength and other job task requirements. They attach directly to Mark-10 force gauges.

Model Numbers & Specifications

Model Description
G1019 Padded attachment, square
G1020 Padded attachment, rectangular
G1021 Padded attachment, curved

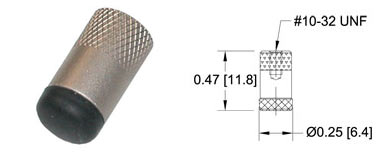

Rubber Tip

This attachment is designed to simulate a finger for testing pushbuttons, membrane switches, etc. Use this grip with a Mark-10 force gauge and test stand to create a complete compression testing system.

Model Numbers & Specifications

Model Capacity lb [N] Weight lb [kg]
G1011 50 [250] 0.01 [0.004]

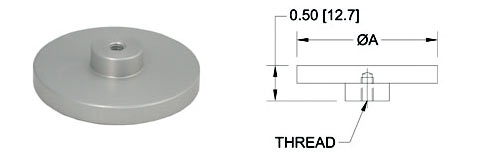

Compression plates

These aluminum compression plates are ideal for testing springs, foams, and other materials. The plates attach directly to Mark-10 force gauges and test stands.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
ØA Thread
G1009 200
[1000]
0.08
[0.04]
2.0
[51.0]
#10-32F
G1009-1 500
[2500]
0.27
[0.12]
3.0
[76.2]
5/16-18F

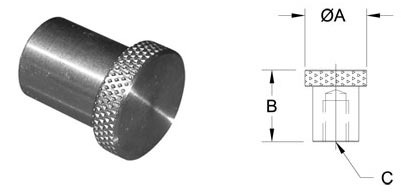

Flat Heads

These attachments are ideal for compression testing of buttons, membrane switches, etc. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
ØA B C
G1029 200
[1000]
0.01
[0.005]
0.5
[12.7]
0.5
[12.7]
#10-32F
G1036 500
[2500]
0.06
[0.027]
0.75
[19.1]
0.87
[22.1]
5/16-18F

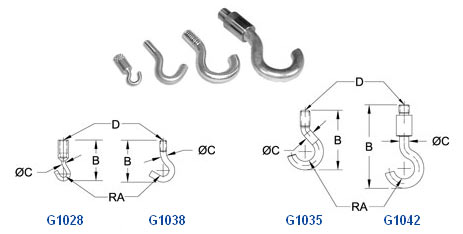

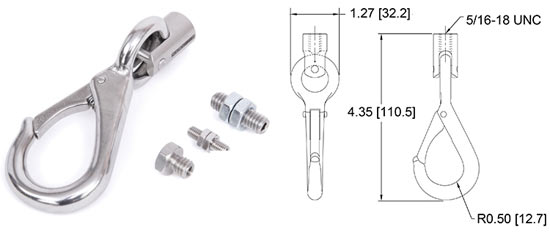

Hooks

These hooks are ideal for a variety of tensile tests. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
RA B ØC D
G1028 20
[100]
0.010
[0.005]
0.05
[1.3]
1.00
[25.4]
0.10
[2.5]
#10-32F
G1038 200
[1000]
0.020
[0.009]
0.02
[5.1]
1.50
[38.1]
0.19
[4.8]
#10-32M
G1035 500
[2500]
0.050
[0.023]
0.30
[7.6]
1.90
[48.3]
0.28
[7.1]
5/16-18M
G1042 1000
[4500]
0.320
[0.145]
0.5
[12.7]
4.10
[104.1]
0.45
[11.4]
1/2-20M

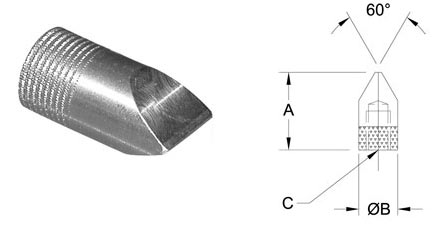

Chisel Points

For compressing or puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
A ØB C
G1025 200
[1000]
0.003
[0.001]
0.5
[12.7]
0.5
[12.7]
#10-32F
G1032 500
[2500]
0.040
[0.018]
1.00
[25.4]
0.50
[12.7]
5/16-18F

Cone Points

For puncturing a variety of samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
A ØB C
G1026 200
[1000]
0.003
[0.001]
0.5
[12.7]
0.5
[12.7]
#10-32F
G1033 500
[2500]
0.030
[0.014]
1.00
[25.4]
0.50
[12.7]
5/16-18F

V-Grooves

For compression testing of round or odd shaped samples. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
A ØB C D
G1027 200
[1000]
0.004
[0.001]
0.5
[12.7]
0.25
[6.4]
#10-32F 0.08
[2.0]
G1034 500
[2500]
0.040
[0.018]
1.00
[25.4]
0.50
[12.7]
5/16-18F 0.25
[6.4]

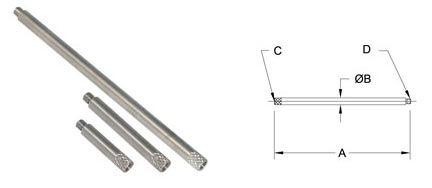

Extension Rods

For use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
A ØB C D
G1024 200
[1000]
0.01
[0.005]
5.0
[127.0]
0.25
[6.4]
#10-32F #10-32F
G1024-1 0.02
[0.009]
2.0
[50.8]
G1024-2 0.05
[0.023]
1.0
[25.4]
G1031 500
[2500]
0.05
[0.023]
5.0
[127.0]
0.50
[12.7]
5/16-18F 5/16-18F
G1031-1 0.10
[0.045]
2.0
[50.8]
G1031-2 0.25
[0.113]
1.0
[25.4]

Swivel Adapters

Use these adapters between any grip and force gauge to provide a swiveling action for proper sample alignment.

Model Numbers & Specifications

Model Capacity lb
[N]
Weight lb
[kg]
A B
G1018-1 200
[1000]
0.12
[0.05]
#10-32M #10-32M
G1018-2 500
[2500]
0.27
[0.12]
5/16-18M 5/16-18M

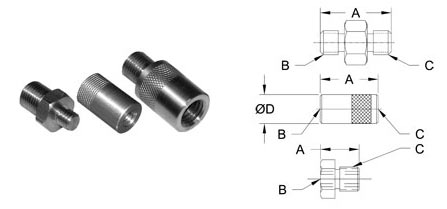

Thread Adapters & Couplings

For use between a force gauge and another attachment or grip. Use them with a force gauge and a test stand to create a complete testing system.

Model Numbers & Specifications

Model Capacity lb
[N]
A B C
G1050 100
[500]
0.75
[19.1]
#4-40M #10-32F
G1051 0.60
[15.2]
#4-40M #10-32M
G1039 200 [1000] 0.75
[19.1]
#10-32F #10-32F
G1030 0.50
[12.7]
#10-32F 5/16-18M
G1047 0.75
[19.1]
#10-32M M4F
G1048 0.75
[19.1]
M4M #10-32F
G1054 0.75
[19.1]
M6M #10-32F
G1040 500
[2500]
1.00
[25.4]
5/16-18M 5/16-18M
G1037 1.00
[25.4]
5/16-18F 5/16-18F
G1049 1.25
[31.8]
M6M 5/16-18F
G1041 1000 [5000] or
500 [2500] *
1.00
[25.4]
1/2-20M 5/16-18M
* 1000 [5000] when used in compression, 500 [2500] when used in tension
