Series TT05 Torque Testers

Series TT05 universal torque testers can be used for a range of applications up to 100 lbFin [11.5 Nm]. The stainless steel loading surface features a matrix of threaded holes, ideal for accommodating specialized fixtures and attachments. The testers' rugged design and simple, intuitive operation allow for use in laboratory and production environments.

Accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT05 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon sample break, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First/second peak torque detection is useful for torque tool testing, tamper evident closure testing, and other applications.

Series TT05 testers include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT05's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

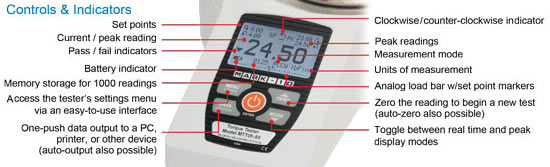

Features

  • Stainless steel loading plate with #10-32 threaded holes accommodates fixtures and attachments
  • Threaded holes are not drilled through the plate, for protection from debris and liquid
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output, data storage, and zeroing upon sample break helps automate testing processes
  • First/second peak detection for torque tool testing, bottle cap testing, and other applications
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • Programmable set point indicators and outputs for pass/fail determination
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • Configurable audio alarms and key tones
  • 5 selectable units of measurement
  • MESUR™ Lite data collection software included

Specifications

Accuracy: ±0.3% of full scale
Sampling Rate: 7,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement Units: ozFin, lbFin, lbFft, Nm, Ncm
Outputs: USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo: Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0.25% of full scale at capacity.
General Purpose: Three open drain outputs, one input.
Set Points: Three open drain lines.
Safe Overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: 10.9 lb [4.9 kg]
Included Items: Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), and NIST-traceable certificate of calibration (data is available for an additional charge).
Warranty: 3 years (see individual statement for further details)

Optional Equipment

<< MESUR™gauge Software
Tabulates and plots torque vs. time or travel. Also calculates statistics, exports to Excel, and more. Requires output cable.

>> Carrying Case
Provides storage space for the TT05 tester, gripping jaws, AC adapter, and accessories.

Ordering Information


Capacity x Resolution
Model lbFin ozFin lbFft Ncm Ncm
MTT05-12 12 x 0.005 192 x 0.1 1 x 0.0005 135 x 0.1 1.35 x 0.001
MTT05-25 25 x 0.01 400 x 0.2 2 x 0.001 290 x 0.2 2.9 x 0.002
MTT05-50 50 x 0.02 800 x 0.5 4 x 0.002 570 x 0.5 5.7 x 0.005
MTT05-100 100 x 0.05 1600 x 1 8 x 0.005 1150 x 0.5 11.5 x 0.005

All models include 110V AC adapters. Add suffix 'E' for euro plug (220V), 'U' for UK plug (220V), or 'A' for Australian plug (220V).
Ex: MTT05-12E, MTT05-50U, MTT05-100A

Optional Equipment

Model Description
CERT Certificate of calibration with data
CT002 Carrying case for TT05
15-1004 MESUR™gauge Software
09-1165 Spare USB cable
09-1163 Cable, Series TT05 to RS-232
08-1026 Spare rechargeable battery
AC1030 Spare AC adapter, 110V US
AC1031 Spare AC adapter, 220V EUR
AC1032 Spare AC adapter, 220V UK
AC1035 Spare AC adapter, 220V AUs

Dimensions
