Calibration Kit for Series TT01 Cap Torque Testers

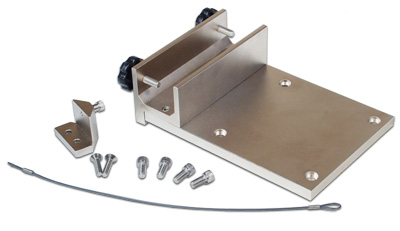

This calibration kit is designed to permit the field calibration of any Series TT01 cap torque tester. The kit contains a complete set of attachments required to mount the tester to a bench, as well as the necessary brackets and cable to mount weights, as follows:

  • Right-angle bench mounting bracket
  • Cable with looped ends
  • Attachment, cable to CTA
  • Set of hardware

Note: Weights are not available from NexGen Ergonomics or Mark-10. Suggested source for calibration weights: Rice Lake Weighing Systems

Refer to the TT01 user's guide for complete calibration instructions. If using English weights, the following weight combinations are recommended to achieve full scale:

MTT01-12
3.6 lb, as follows:
1 lb hanger weight - qty. 1
2 lb slotted weight - qty. 1
0.5 lb weight - qty. 1
0.1 lb weight - qty. 1

MTT01-50
15 lb, as follows:
1 lb hanger weight - qty. 1
10 lb slotted weight - qty. 1
2 lb slotted weight - qty. 2

MTT01-100
30 lb, as follows:
1 lb hanger weight - qty. 1
20 lb slotted weight - qty. 1
5 lb slotted weight - qty. 1
2 lb slotted weight - qty. 2

Ordering Information

Part No. Description
AC1036 Calibration kit for TT01, weights not included
