CHATILLON DMG Series
Mechanical Job Task Analyzer

This hand-held dynamometer lets you objectively measure manual muscle strength and functional task requirements for almost any application. Offers full portability and ease of use for a fraction of the cost of expensive computer controlled systems.

Available in 200 lbf and 500 lbf capacities, these rugged mechanical instruments accurately measure (±0.5% FS) instantaneous push or pull forces generated by the test subject. A calibrated dial shows instantaneous force. An easy-to-use peak force switch freezes the pointer at the maximum force for simple identification and analysis. Gauges come complete with handle assembly and carrying case. Use with optional (FCEK) or (MSCK). All DMG Series gauges come standard with a Certificate of Calibration with data verification to NIST.

Applications

Conduct job task analysis, ergonomic analysis, and ADA compliance evaluations. Measure actual push, pull, and lift forces of a particular job task, then quantitatively evaluate an individual's ability to perform each task. Ensure an employee's ability to work following an injury.

Features

  • Easy to Use, Durable Construction
  • Tensile or Compression Testing
  • Intrinsically Safe
  • Two Capacities 200 lbf & 500 lbf
  • Push or Pull Operations
  • Tare Ring
  • Peak Capture
  • Universal Mounting Plate
  • NIST Calibration with Data

Standard Gauge Measurement Functions

  • Tensile (Pull) Load (one direction dedicated to pull)
  • Compression (Push) Load (one direction dedicated to push)
  • Peak Tension or Compression Load (switch activated)

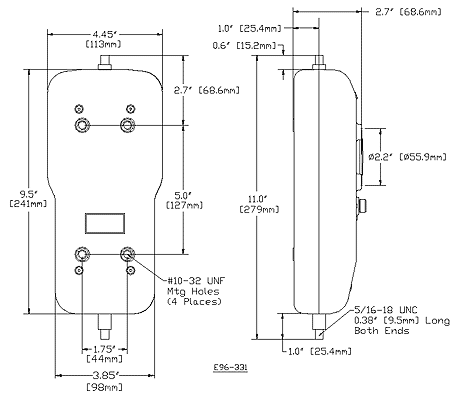

Specifications

Accuracy: ±0.5% of Full Scale
Overload Capacity: 110% of Rated Capacity
Maximum Overload: 150% of Rated Capacity
Tare Capacity: 10% of Rated Capacity
Dial Resolution: 0.5% of Full Scale
Deflection: 10mm (.394 inches) at Full Scale
Operating Temperature: 40°F to 110°F (5°C to 45°C)
Instrument Weight: 4.7 lbs (2.12 kg)
Shipping Weight with case: 8.4 lbs (3.80 kg)
Warranty: 2 Years

Parts and Accessories

Model Description Accuracy Certification Capacity Thread
DMG-200 DMG Series Dynamometer
with Decimal Dial
±0.5% FS NIST Data 200 x 1.0 lbf 5/16-18F
DMG-500 DMG Series Dynamometer
with Decimal Dial
±0.5% FS NIST Data 500 x 2.5 lbf 5/16-18F
K-DMG-200 DMG Series Medical Kit ±0.5% FS NIST Data 200 x 1.0 lbf 5/16-18F
K-DMG-500 DMG Series Medical Kit ±0.5% FS NIST Data 500 x 2.5 lbf 5/16-18F


Model Description DG-XXX DMG-XXX K-DMG-XXX
SPK-FMG-011B Flat Adapter, 5/16-18F (500 lbf) Standard Optional Optional
SPK-FMG-012C Hook, Stationary, 5/16-18F (500 lbf) Standard Optional Optional
NC002500 Hook, with Latch, 5/16-18F (500 lbf) Optional Standard Standard
SPK-FMG-008B Chisel Adapter, 5/16-18F (500 lbf) Standard Optional Optional
SPK-FMG-009B Point Adapter, 5/16-18F (500 lbf) Standard Optional Optional
SPK-FMG-010B Notch Adapter, 5/16-18F (500 lbf) Standard Optional Optional
NC000725 V-Notch Fixture, 1-inch, 5/16-18F (500 lbf) Optional Optional Standard
NC000721 V-Notch Fixture, 5/8-inch, 5/16-18F (500 lbf) Optional Optional Standard
SPK-FMG-013A Extension Rod, #10-32F - #10-32M (100 lbf) Standard Optional Standard
SPK-FMG-142 Curved Compression Fixture,
with Rubber Pad, 5/16-18F
Optional Optional Standard
SPK-FMG-143 Compression Plate, Circular,
with Rubber Pad, 5/16-18F
Optional Optional Standard
SPK-FMG-144 Palm Fixture, 5/16-18F Optional Optional Standard
SPK-FMG-145 Compression Plate, Large Rectangular,
with Rubber Pad, 5/16-18F
Optional Standard Standard
SPK-FMG-146 Compression Plate, Small Rectangular,
with Rubber Pad, 5/16-18F
Optional Optional Standard
NC002844 Grasping Cable Optional Optional Standard
SPK-DG-HANDLE Handle Assembly Optional Standard Standard
NC002728 DG Carrying Case (Small) Standard NA
NC002871 DMG Carrying Case (Large) Optional Standard
NC003115 K-DMG Carrying Case (Large) Optional Optional Standard
SPK-FMG-147 Travel Carrying Case NA Standard
NC002845 Soft Case Fanny Pack Optional Optional
Specification SS-MD-3940-0703 July 2003
AMETEK and CHATILLON are registered trademarks of AMETEK, Inc.
