NEXYGEN™ DF Software
for Chatillon® Series Digital Force & Torque Gauges

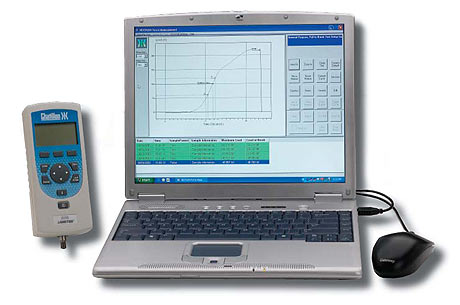

NEXYGEN DF software expands the functionality of your CHATILLON Series digital force gauge. This all-new and easy-to-use Windows based package interfaces directly to your digital force gauge. You may perform break tests, limits tests and torque tests. You can download peak load results from the gauge and display your results in tabular and graphical formats. Graphical results include markers denoting exact point positions. Results can be color coded for immediate pass/fail recognition. You can easily specify units of measure, fonts, titles, force measurement resolution.

The software provides basic force measurement tensile and compression test formats including pull to break, pull to limit, compress to rupture and compress to limit. Results are presented in a spreadsheet format so you can analyze and manipulate data and perform common mathematical and statistical calculations.

The software is easy to setup and features intelligent prompts, menus, combo boxes and other methods to get you up and running quickly and efficiently with minimal training. Navigation is simple using "drag & drop" and cut, copy and paste techniques. Data is easily exported to WORD, EXCEL, ACCESS, POWERPOINT or OUTLOOK.

Features

  • Simple to Setup and Operate
  • Interface Directly to your Chatillon Digital Gauge
  • Seamless Integration with WORD, EXCEL, ACCESS
  • Graphical and Tabular Results
  • Pre and Post-Test Analysis
  • Mathematical Calculations including Statistics
  • Pass - Fail Function
  • ISO TickIT Accreditation

Test Functions

  • Pull to Break
  • Pull to Limit
  • Compress to Rupture
  • Compress to Limit
  • Torque to Break
  • Torque to Limit

Minimum System Requirements

  • Pentium Processor, 166 MHz
  • 16 MB RAM
  • 35 MB Hard Disk Space
  • 1 Free COM Port, with 16550 UART
  • CD ROM Drive (for Installation)
  • Users should be provided Administrative Rights on the personal computer where the software will be installed.

Compatible Gauges

Nexygen DF software may be used with the following Chatillon force gauges only.

  • E-DFE Series
  • DFS Series
  • DFS-R Series
  • DFS-R-SLC Series (load)
  • DFS-R-STS Series (torque)
  • DFIS Series
  • DFT Series
  • DFGS Series
  • DFGS-R Series
  • DFA Series
  • DFA-R Series
  • DTG Series

Ordering Information

Part No. Description
NC002867 NEXYGEN DF Application Software, Version 1.0, Single License
Specification SS-FM-3603-0805 August 2005
AMETEK and CHATILLON are registered trademarks of AMETEK, Inc.
