Hand Sensor Array (HSA)

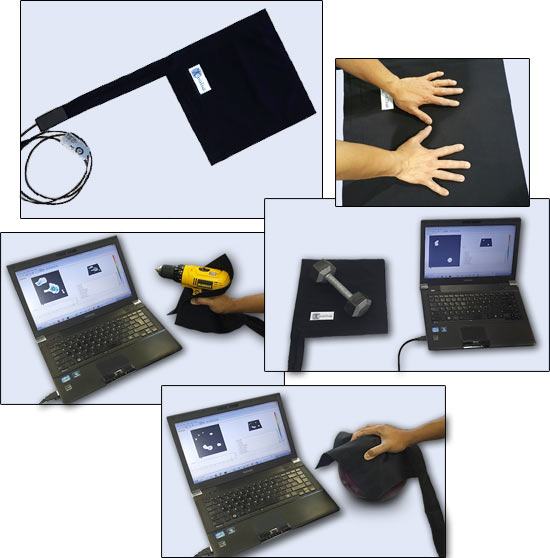

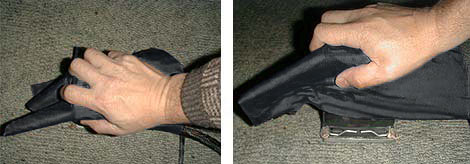

The HSA mats are smaller pressure mat versions similar to the seat and back pressure high resolution mats. They are available in two sizes both using the new ST patented stretch material (black mats. The HSA can be used for numerous applications where you grasp, grab or apply a force to a tool, device or object, or where a small mat is needed under for example a body armor vest. You can easily see the pattern of force or pressure being exerted via the software's color mapping display.

These mats can be ordered with the new T7 (BodiTrak system interface) which plugs directly into a PC's USB port. Only high resolution versions are available.

Similar, to our other mapping products (e.g. seat or back) the system will provide a detailed recording of each sensor's PSIU readings over time as well as a real-time display showing each sensor. The maximum force that can be measured is 30 psi.

FSA 4D software is included. The High Pressure Calibration Kit can be used or also lower pressure jigs.

Data gathered can easily be transferred to a spreadsheet to facilitate in depth statistical analysis.

FSA 4D software allows for video synchronization of the captured data with individual video frames.

For the smaller HSA, the Eastex cover covers the 12" connection to the external T7 Interface Module (IM). On the larger HSA the T7 interface electronics are located inside the mat similar to the larger seat mats.




Specifications

Small HSA

Mat Size: 300 mm x 300 mm (11.8 x 11.8")
Sensing Area Dimensions: 228 mm x 228 mm (9 x 9")
Sensor Size: 11.1125 mm X 11.1125 mm
Space Between Sensors: ~3 mm
Sensor Arrangement: 16 x 16 array
Number of Sensors: 256
Calibrated Pressure Range: 0-100 Psi (30 psi using High Pressure Cal Jig)
Interface: T7 interface is external

Large HSA

Mat Size: 450 mm x 450 mm
Sensing Area Dimensions: 350 mm x 350 mm
Sensor Size: 11.1125 mm X 11.1125 mm
Space Between Sensors: ~3 mm
Sensor Arrangement: 24 x 24 array
Number of Sensors: 576
Calibrated Pressure Range: 0-100 Psi (30 psi using High Pressure Cal Jig)
Interface: T7 interface is internal

All mats are CE marked.
