Tactilus® by NexGen - Gait Analysis Walkway

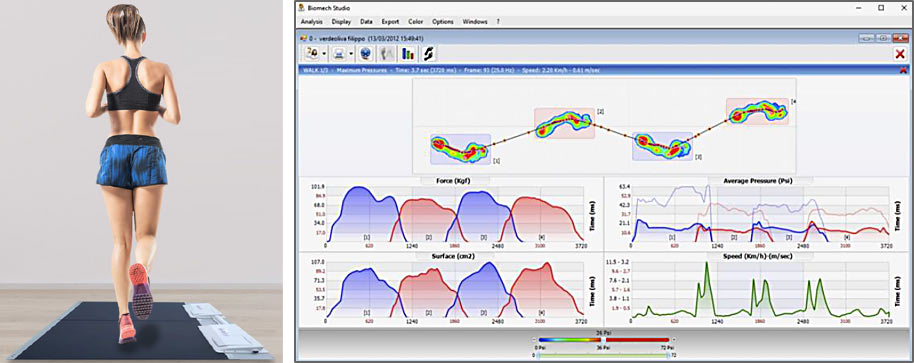

Tactilus allows the user to capture and record pressure conditions occurring in between any two contacting or impacting surfaces in real time. The paper-thin Tactilus sensor is actually placed at the contact interface where it records and assimilates both pressure distribution and pressure magnitude on your Windows based computer.

Exciting advancements in conductive textiles have allowed the development of a sensor that conforms better to your surface than ever before. Not only does the sensor conform better to curved surfaces but it stretches to alleviate shearing affects caused by shifting contact surfaces - an innovation that no other sensor company can touch!

Specifications

Number of Sensing Points: 9216
Speed: 50/100 Hz (depending on the active sensors)
Pressure Range: 0 - 73 psi (50 - 500Kpa)
Connection Method: USB only
Matrix: 192 x 48
Active Area: 48x48 square cm per module
Number of Modules that can be interconnected: 2-16
Query Speed: 50/100 hz
Weight: 11 lbs (5 kg) per module
Accuracy: ±10%
