Pressure Mapping Insoles

The SMART FPS SYSTEM is composed of ultra flexible insoles made up of “on tissue” resistive sensors. It allows you to accurately detect the pressures applied by the foot inside shoes, which is a useful solution for in-depth gait analysis.

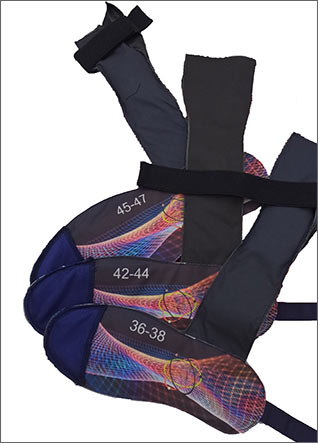

Every system pair is provided with up to 3 sizes. Additional units in different sizes are available and can be ordered separately.

With the Bluetooth Connection, you can connect to mobile devices. Once saved to the cloud service, the data can be accessed and displayed on a web browser, allowing you to print reports, check graphs and carry out comparisons of patient analysis.

Specifications

Thickness: 1 mm
Measures: from 36 to 45
Material Base: on fabric
Couple of Insoles (euro sizes): From 1 to 4, 36/38, 39/41, 42/44, 45/47
Size of Sensors: 10 x 10 mm
Number of Sensors: 68 for insoles
Pressure: 10-500 Kpa (1.5-75 psi)
Frequency: 50-100 hz
Connection: Bluetooth 4.1
Power Supply: 3.7 v rechargeable battery
Repeability Error: ±3%
