Voltage Isolator 4 Infiniti

The Voltage Isolator 4 Infiniti (T9405MA) is an interface device which provides electrical isolation and allows a ProComp Infiniti or FlexComp Infiniti system to be safely interfaced with analog outputs of line-powered systems, such as:

• Computers with DAC cards
• Isokinetic dynamometers (e.g. Biodex)
• Force platforms
• Blood pressure monitors
• SPO2 monitors
• And more...

A BioGraph Add-on CD is provided with template screens and channel sets to help users develop their own screens. We also provide an off-the-shelf solution for Biodex System. The screen shot above shows one of the screens on the CD.

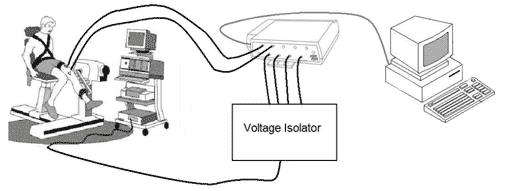

Illustration of the use of the Voltage Isolator 4 Infiniti with an isokinetic dynamometer and EMG sensors

Features

1. It has 4 channels and each unit allows for interface with to 4 signals.
2. It electrically isolates the examinee from the interfaced system (4kV isolation as per IEC/EN 60601-1; medical grade isolation).
3. It rescales the voltage inputs; possible ranges (set at factory): ±2.5V, ±5V, ±10V, 0-5V, 0-10V or 0-20V.

Suggested Applications

• Integrate isokinetic systems (such as Biodex) with physiological data
• Integrate force platforms with physiological data
• Rehabilitation
• Biomechanics
• Sports (athletic performance, sport medicine)
• Ergonomics
• Research
