Baseline^® BIMS™ Digital Dynamometers

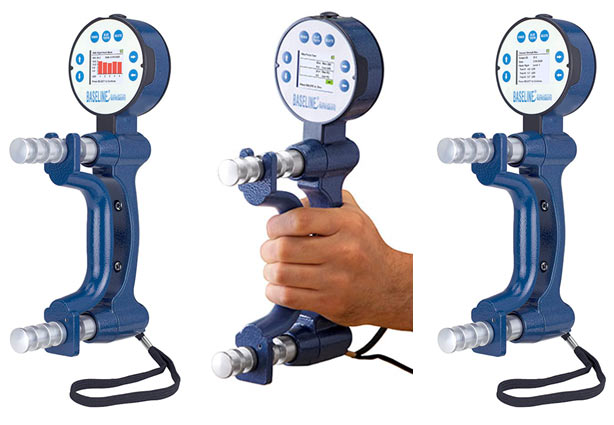

Baseline BIMS Digital Grip Dynamometer

There are 3 models to choose from: the Functional Model, the Clinic Model, and the Deluxe Model.

The BIMS Digital 5-Position Grip Dynamometer by Baseline includes load-cell digital technology at an attractive price with accuracy of ±1%. The result is more accurate, repeatable, and consistent measurements compared to the standard hydraulic dynamometer. With this new digital platform, BIMS dynamometers are hydraulic oil-free, and all functions do not require moving parts that are prone to breaking or leaking. Each dynamometer features adjustable 5-position handles that fit all hand sizes and enable testing at various grip positions. The units are simple and easy to use, simply press select to begin the test and delete to reset the test to zero. The BIMS dynamometer saves time by calculating mean, SD, COV, and other statistics all in this feature packed device. The dynamometer is designed for both strong and weak patients. Tests are shown in real time, with strength readings being displayed in both pounds and kilograms. Extended testing capacity can measure grip strength up to 300 lbs (135 kg).

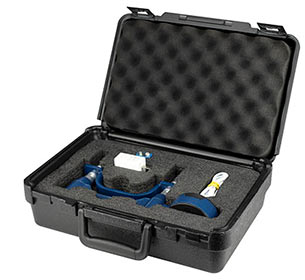

All units are shipped in a fitted foam carrying case and user manual.

Functional Model

The functional model only contains the Max Force testing protocol for more straightforward test settings. Results are shown on a fully colored LCD screen that easy to read. These results are stored either on the device itself or transferred to your local PC. The BIMS dynamometer is also Bluetooth-enabled for connection to future applications.

Clinic Model

The clinic model is ideal for clinic practitioners to perform timed tests which are calculated and saved on the device. The preset Max Force, Quick, and General Strength protocols provide the necessary tests in a clinical setting. Results are shown on a fully colored LCD screen that easy to read. These results are stored either on the device itself or transferred to your local PC. The BIMS dynamometer is also Bluetooth-enabled for connection to future applications.

Deluxe Model

The deluxe model expands upon the Clinic model and includes more advanced timed tests that are ideal for research applications, Workers' Compensation, FCE (Functional Capacity Evaluation) and day-to-day testing. The preset Max Force, Quick, General Strength, Rapid Exchange, Modified Maximum Voluntary Effort, Maximum Voluntary Effort, and Fatigue protocols provide the necessary tests in just about any setting. Results are shown on a fully colored LCD screen that easy to read. These results are stored either on the device itself or transferred to your local PC. The BIMS dynamometer is also Bluetooth-enabled for connection to future applications.

Ordering Information

Dimensions: 11" x 3" x 5.5"
Weight: 4 lbs
Accuracy: ±1%

Baseline 12-0070: BIMS Digital 5-Position Grip Dynamometer, Clinic Model
Baseline 12-0071: BIMS Digital 5-Position Grip Dynamometer, Deluxe Model
Baseline 12-0072: BIMS Digital 5-Position Grip Dynamometer, Functional Model

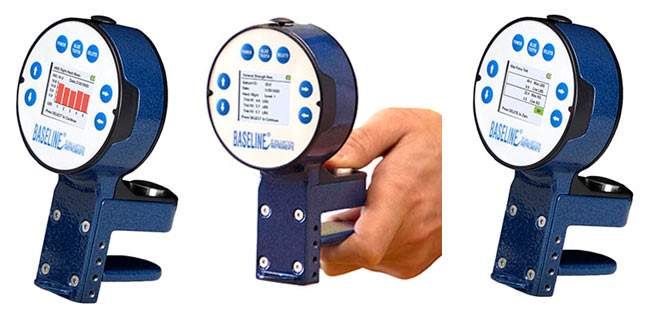

Baseline BIMS Digital Pinch Dynamometer

The BIMS Digital 5-Position Pinch Dynamometer by Baseline includes load-cell digital technology at an attractive price with accuracy of ±1%. The result is more accurate, repeatable, and consistent measurements compared to the standard hydraulic models. With this new digital platform, these dynamometers are hydraulic oil-free, and all functions do not require moving parts that are prone to breaking or leaking.

Each dynamometer features adjustable 5-position paddles that fit all hand sizes and enables testing at various grip positions. Simply press select to begin the test and delete to reset the test to zero. The BIMS digital gauges saves time by calculating mean, SD, COV, and other statistics all in this feature packed device. These units are designed for both strong and weak patients. Tests are shown in real time, with strength readings being displayed in both pounds and kilograms. Extended testing capacity can measure grip strength up to 100 lbs (45 kg).

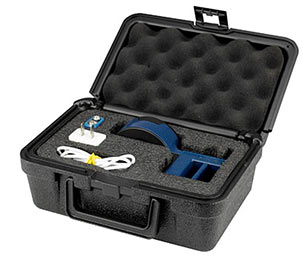

All units are shipped in a fitted foam carrying case and user manual.

Functional Model

The functional model only contains the Max Force testing protocol for more straightforward test settings. Results are shown on a fully colored LCD screen that is easy to read. These results are stored either on the device itself or transferred to your local PC. The BIMS dynamometer is also Bluetooth-enabled for connection to future applications.

Clinic Model

The clinic model is ideal for clinic practitioners to perform timed tests which are calculated and saved on the device. The preset Max Force, Quick, and General Strength protocols provide the necessary tests in a clinical setting. Results are shown on a fully colored LCD screen that is easy to read. These results are stored either on the device itself or transferred to your local PC. The BIMS dynamometer is also Bluetooth-enabled for connection to future applications.

Deluxe Model

The deluxe model expands upon the Clinic model and includes more advanced timed tests that are ideal for research applications, Workers' Compensation, FCE (Functional Capacity Evaluation) and day-to-day testing. The preset Max Force, Quick, General Strength, Rapid Exchange, Modified Maximum Voluntary Effort, Maximum Voluntary Effort, and Fatigue protocols provide the necessary tests in just about any setting. Results are shown on a fully colored LCD screen that is easy to read. These results are stored either on the device itself or transferred to your local PC. The BIMS dynamometer is also Bluetooth-enabled for connection to future applications.

Ordering Information

Dimensions: 6" x 3" x 3.5"
Weight: 3 lbs
Accuracy: ±1%

Baseline 12-0080: BIMS Digital 5-Position Pinch Dynamometer, Clinic Model
Baseline 12-0081: BIMS Digital 5-Position Pinch Dynamometer, Deluxe Model
Baseline 12-0082: BIMS Digital 5-Position Pinch Dynamometer, Functional Model

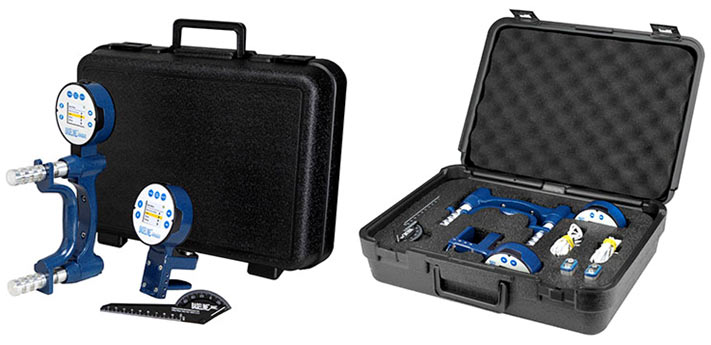

Baseline BIMS Digital 5-Position Dynamometer Sets

Included with the BIMS digital grip dynamometer and digital pinch dynamometer is a plastic finger goniometer, foam carrying case and user manual.

Ordering Information

Dimensions: 13.5" x 3.25" x 9.5"
Weight: 5 lbs
Accuracy: ±1%

Baseline 12-0090: BIMS Digital 5-Position Dynamometer, 3-Piece Hand Evaluation Set, Clinic Model
Baseline 12-0091: BIMS Digital 5-Position Dynamometer, 3-Piece Hand Evaluation Set, Deluxe Model
Baseline 12-0092: BIMS Digital 5-Position Dynamometer, 3-Piece Hand Evaluation Set, Functional Model

Notice: The clinical models on this page are currently not available for sale in Canada.

Baseline is a registered trademark of Fabrication Enterprises Incorporated.
