Baseline® Inclinometers

Bubble Inclinometer: 12-1056

Inclinometer standards codified in the AMA Guide to the Evaluation of Permanent Impairment, third edition. Place inclinometer near joint to be measured; turn dial until scale reads 0; take joint through it's range; read range traveled directly from dial.

AcuAngle Inclinometer: 12-1149

The Baseline AcuAngle inclinometer provides a pointer which is dampened by fluid to assure accurate ROM measurements. Place inclinometer near joint to be measured, turn the dial to zero, take joint through its range, and read range-of-motion from the dial. The adjustable feet along side-to-side scale adapts to body contours.

12-1149 - AcuAngle inclinometer
12-1149-2 - AcuAngle inclinometer (2 units)

Digital Inclinometer: 12-1057

Range-of-motion can be read directly after the joint has been taken through its range. Place inclinometer near the joint to be measured; press "zero" button; move joint through its range; press "hold" button. Comes with case. Dimensions: Length 6", Width 1.25", Height 2".

The Baseline Digital Inclinometer has a range of 360 degrees (-180 degrees to 180 degrees). The resolution is 1 degree ±1 degree.

Wrist Inclinometer: 12-0502

Inclinometer standards codified in the AMA Guide to the Evaluation of Permanent Impairment, third edition. Place inclinometer near joint to be measured; turn dial until scale reads 0; set first tab, take joint through its range; set second tab, read range traveled directly from dial.

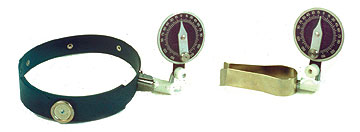

Universal Inclinometer: 12-1070/12-1071

Measures range-of-motion of any body part. Set the moveable dial so that the weighted indicator points to zero move joint through its range and read dial.

12-1070 - with clip
12-1071 - with headband

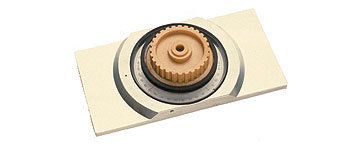

Gravity Inclinometer: 12-1055/12-1054

Accurately measures range-of-motion. Place inclinometer near the joint to be measured; turn the dial to zero; take the joint through its range; read the total range directly from the dial. Numerous measurements require the simultaneous use of 2 inclinometers. Comes in carry case.

The Baseline Gravity Inclinometer has a range of 360 degrees. The resolution is 1 degree ±1 degree.

12-1055 - gravity inclinometer
12-1054 - gravity inclinometer set (2 units)

Baseline is a registered trademark of Fabrication Enterprises Incorporated.
