Lafayette DualGrip Dynamometer 5030DG

The Lafayette DualGrip Dynamometer is the next generation in wireless grip dynamometry. Supporting a variety of well-known tests, the DualGrip is designed to be easily held by adults and children with a focus on increased accuracy in the lower range.

Testing

There are three main tests that are administered using the DualGrip. Each test is done in a selected number of trials and times. Completed tests will be automatically saved to the device or optionally stored in the LEval app.

Peak force

Measures sustained force
Accommodates dominant, non-dominant, or both hands

Rapid grip exchange

Quickly perform grip test using each hand in sequence
Audio stimulus notifies users to switch hands

Force over time

Determine how long grip is sustained through maintaining maximum grip or attempting to hold grip above specified threshold

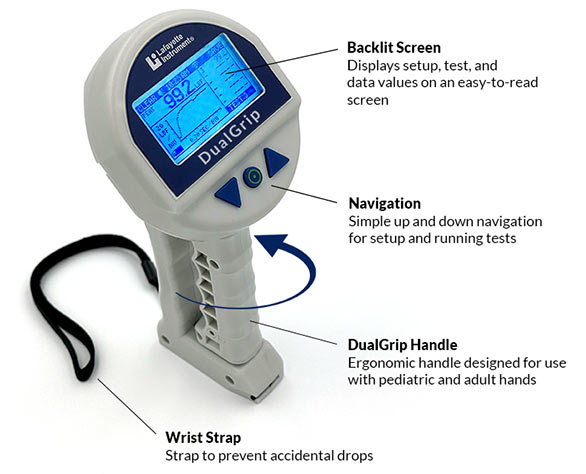

Features

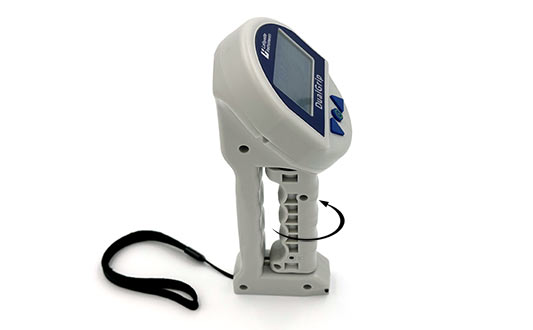

Unique handle for large and small hands:
Simply rotate and lock the handle of the low weight dynamometer for use with even the smallest hands.

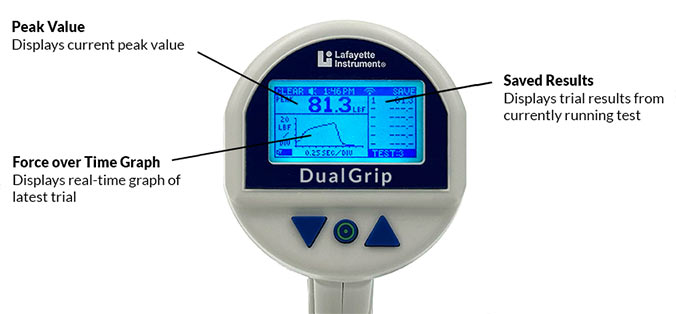

Easy to find results - front and center:
Setup tests and view real-time and stored results via backlit digital screen.

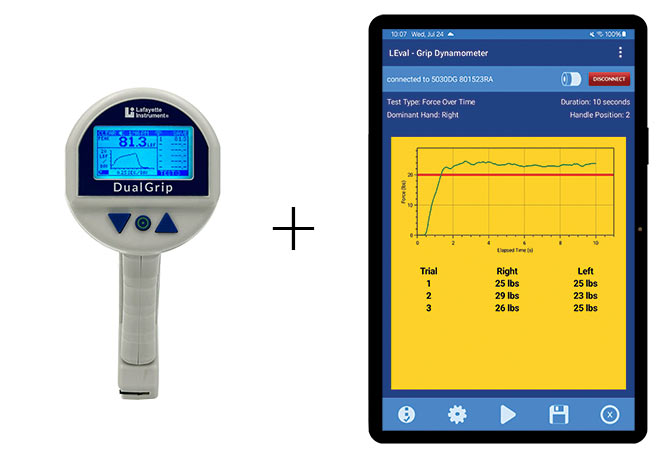

Pair with LEval for even more features:
LEval allows in-app setup, storage, and data organization, and is recommended when repetition or long-term storage is required.

Additional Features

Centralized power and directional buttons for simple usage and navigation
Select force measurements in pounds (lbs), kilograms (kg), or Newtons (N)
Tone indicates start and stop
Powered by rechargeable lithium-ion battery

Specifications

Size: 3.25" x 7.69" x 2.85" (8.3 cm x 19.5 cm x 7.2 cm)
Weight: 0.7 lbs (317.5 g)
Range: 0-200 lbs (90.7 kg or 889.6 N)
Accuracy: ±1% over full scale or ±0.2 lbs (±0.09kg or ±0.9N)
Resolution: 0.1 lbs (0.1 kg or 1 N)
Battery: One (1) rechargeable lithium-ion battery
Battery Life: 10 Hours
Charge Time: 80% approx. 45 minutes, 100% approx. 2 hours
Data Storage Capacity: 100 tests
Preset Test Length: 1-10 seconds in 1 second increments
25 ms sample rate
