Series 3 Gauges

Series 3 digital force gauges are designed for tension and compression force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges' features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

The gauges include MESUR™ Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Series 3 force gauges are supplied in a cushioned carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and quick start guide), and NIST-traceable certificate of calibration (certificate with data is available for an additional charge).

Optional Equipment includes:

  • MESURgauge Software - tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, generates reports, and more.
  • Certificate of calibration with data
  • A variety of grips and attachments


Features

  • High-speed 2,000 Hz sampling rate
  • USB data output
  • Ultra-compact size

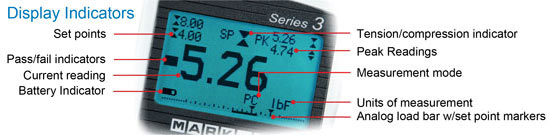

  • Large backlit graphic display
  • Programmable set points with pass/fail indicators
  • Live load bar graph with set point markers
  • Peak readings and set points always displayed
  • 3 selectable units of measurement
  • Configurable audio alarms and key tones

Specifications

Accuracy: ±0.3% of full scale ±1 digit
Sampling Rate: 2,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement Units: lbF, gF, kgF, N (depending on model)
USB Output: By pressing DATA key only. Configurable up to 115,200 baud.
Configurable Settings: Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe Overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: M3-012 - M3-100: 0.7 lb [0.33 kg]
M3-200 - M3-500: 0.9 lb [0.41 kg]
Included Items: Carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)
Warranty: 3 years (see individual statement for further details)

Ordering Information


Capacity
Resolution
Model lbF kgF gF N lbF kgF gF N
M3-012 0.12   50 0.5 0.0001   0.05 0.0005
M3-025 0.25   100 1 0.0002   0.1 0.001
M3-05 0.5   250 2.5 0.0005   0.2 0.002
M3-2 2 1   10 0.002 0.001   0.01
M3-5 5 2.5   25 0.005 0.002   0.02
M3-10 10 5   50 0.01 0.005   0.05
M3-20 20 10   100 0.02 0.01   0.1
M3-50 50 25   250 0.05 0.02   0.2
M3-100 100 50   500 0.1 0.05   0.5
M3-200 200 100   1000 0.2 0.1   1
M3-500 500 250   2500 0.5 0.2   2

All models include 110V AC adapters. Add suffix "E" for euro plug (220V), "U" for UK plug (220V), or "A" for Australian plug (220V). Example: M3-20E, M3-100U, M3-500A

Included Accessories


Gauge Model
Accessory M3-012 - M3-20 M3-50 - M3-100 M3-200 - M3-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling   G1039 G1037

Optional Equipment

Model Description
CERT Certificate of calibration with data
15-1004 MESURgauge software
09-1165 Spare USB cable
08-1026 Spare rechargeable battery
AC1030 Spare AC adapter, 110V
AC1031 Spare AC adapter, 220V EUR
AC1032 Spare AC adapter, 220V UK
AC1035 Spare AC adapter, 220V AUS

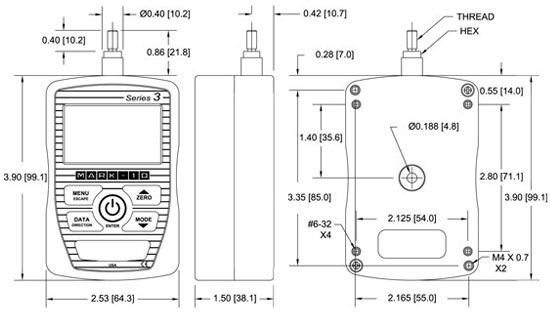

Dimensions

Models Thread Hex
M3-012 - M3-100 #10-32 UNF 5/16 [7.94]
M3-200 - M3-500 5/16-18 UNC 11/32 [8.74]
