Mark-10 Plug & Test™ M3i Force/Torque Indicator

The Mark-10 M3i digital force/torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors (see below). With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor's smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with the advanced 5i force/torque indicator.

The M3i shares its menu structure and most specifications with Series 3 digital force gauges. The sampling rate is 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauge's features and configurable parameters. The display also features an analog load bar for graphical representation of applied load, as well as set point indicators for pass-fail testing. USB output is provided for data collection purposes.

The gauges include MESUR™ Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.

Use MESUR™gauge Analysis Software to tabulate, graph, and analyze test data.

Features

Interchangeable force and torque sensors through Plug & Test™ technology
High-speed 2,000 Hz sampling rate
USB data output
Ultra-compact size
Large backlit graphic display
Programmable set points with pass/fail indicators
Live load bar graph with set point markers
Peak readings and set points always displayed
Configurable audio alarms and key tones
Programmable auto-shutoff
Battery or AC operation
MESUR™ Lite data collection software included
CE mark

Specifications

Accuracy:	±0.2% of full scale ±1 digit + sensor
Sampling Rate:	2,000 Hz
Power:	AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life:	Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use
USB Output:	By pressing DATA key only. Configurable up to 115,200 baud.
Configurable Settings:	Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe Overload:	150% of full scale (display shows "OVER" at 110% and above)
Weight:	0.7 lbs [0.3 kg]
Included Items:	Carrying case, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), and certificate of conformance.
Warranty:	3 years (see individual statement for further details)

Mark-10 M3i Force/Torque Indicator Screen

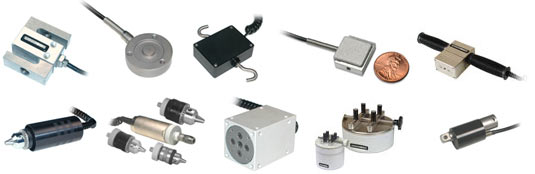

Plug & Test™ Force/Torque Sensors

A complete line of Mark-10 Plug & Test remote force sensors and torque sensors is available for use with the M3i and M5i model indicators. Click here to learn more.

Optional Equipment

>> MESURgauge Software
Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.

Output Cables
Send test data to a PC, statistical printer, or other data collector for further analysis.

>> RS-232 to USB Adapter
Converts RS-232 to USB output. Includes USB cable and installation CD.

<< Table Top Stand
Includes mounting holes for bench mounting and angle adjustment.

<< Upgrade to Plug & Test™
Upgrade service replaces BGI style connector with M5i/M3i Plug & Test connector.

Ordering Information

Model	Description
M3I	Force/torque indicator, 110V
M3IE	Force/torque indicator, 220V Europe
M3IU	Force/torque indicator, 220V UK
M3IA	Force/torque indicator, 220V Australia

Optional Equipment

Model	Description
15-1004	MESURgauge Software
09-1165	Spare USB cable
08-1026	Spare rechargeable battery
AC1030	Spare AC adapter, 110V
AC1031	Spare AC adapter, 220V EUR
AC1032	Spare AC adapter, 220V UK
AC1035	Spare AC adapter, 220V AUS
AC1008	Stand, table top
SVC014	Upgrade service BGI style connector to Plug and Test connector

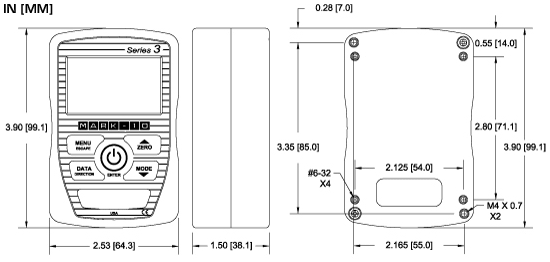

Dimensions
