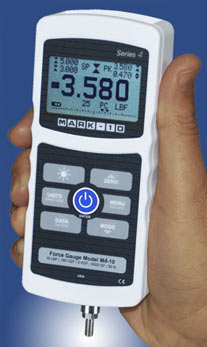

Series 4 Gauges

Series 4 digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale ±1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges' many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.

On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.

An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

Series 4 gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge's memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.

Series 4 force gauges are supplied in a cushioned carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and quick start guide), and NIST-traceable certificate of calibration with data.

Optional Equipment includes:

  • MESURgauge Software - tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more.
  • Output cables - Send test data to a PC, statistical printer, or other data collector for further analysis.
  • A variety of grips and attachments


Features

  • High-speed 3,000 Hz sampling rate
  • USB, RS-232, Mitutoyo, and analog outputs

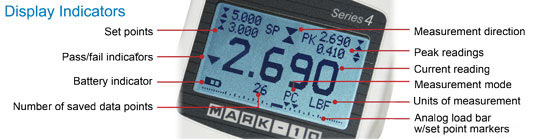

  • Large backlit graphic display
  • 50-point data memory with statistics (min, max, mean, standard deviation) and outputs
  • Live load bar graph with set point markers
  • Programmable set points, with alarms and outputs
  • Peak readings and set points always displayed
  • 5 selectable units of measurement
  • Configurable audio alarms and key tones
  • Password protection, configurable for individual keys and calibration

Specifications

Accuracy: ±0.2% of full scale ±1 digit
Sampling Rate: 3,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement Units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs: USB / RS-232: Configurable up to 115,200 baud.
Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VCD, ±0.25% of full scale at capacity.
General Purpose: Three open drain outputs, one input.
Set Points: Three open drain lines.
Configurable Settings: Digital filters, outputs, automatic shutoff, default settings, key tones, audio alarms, calibration
Safe Overload: 150% of full scale (display shows "OVER" at 110% and above)
Weight: M4-012 - M4-100: 1.0 lb [0.45 kg]
M4-200 - M4-500: 1.2 lb [0.54 kg]
Included Items: Carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration with data
Warranty: 3 years (see individual statement for further details)

Ordering Information


Capacity
Resolution
Model lbF ozF kgF gF N kN mN lbF ozF kgF gF N kN mN
M4-012 0.12 2   50 0.5   500 0.00005 0.001   0.02 0.0002   0.2
M4-025 0.25 4   100 1   1000 0.0001 0.002   0.05 0.0005   0.5
M4-05 0.5 8   250 2.5   2500 0.0002 0.005   0.1 0.001   1
M4-2 2 32 1 1000 10     0.001 0.02 0.0005 0.5 0.005
M4-5 5 80 2.5 2500 25     0.002 0.05 0.001 1 0.01
M4-10 10 160 5 5000 50     0.005 0.1 0.002 2 0.02
M4-20 20 320 10 10000 100     0.01 0.2 0.005 5 0.05
M4-50 50 800 25 25000 250     0.02 0.5 0.01 10 0.1
M4-100 100 1600 50 50000 500     0.05 1 0.02 20 0.2
M4-200 200 3200 100   1000 1   0.1 2 0.05   0.5 0.0005
M4-500 500 8000 250   2500 2.5   0.2 5 0.1   1 0.001

All models include 110V AC adapters. Add suffix "E" for euro plug (220V) or "U" for UK plug (220V). Example: M4-50E or M4-200U.

Included Accessories


Gauge Model
Accessory M4-012 - M4-20 M4-50 - M4-100 M4-200 - M4-500
Extension Rods G1024 G1024 G1031
Cone G1026 G1026 G1033
Chisel G1025 G1025 G1032
V-Groove G1027 G1027 G1034
Flat G1029 G1029 G1036
Hook G1028 G1038 G1035
Coupling   G1039 G1037

Optional Equipment

Model Description
15-1004 MESURgauge software
09-1163 Cable, Series 5 to RS-232

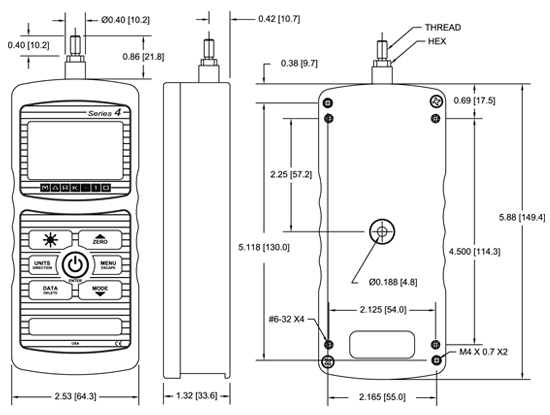

Dimensions

Models Thread Hex
M4-012 - M4-100 #10-32 UNF 5/16 [7.94]
M4-200 - M4-500 5/16-18 UNC 11/32 [8.74]
