Ergonomics and Biomechanics Products
HumanCAD®
HumanCAD Version 7 development is continuing. An enhanced Animation module is being developed to be included in Version 7 and will be released with the next Alpha Version.
Click here to learn more about the current version of HumanCAD.

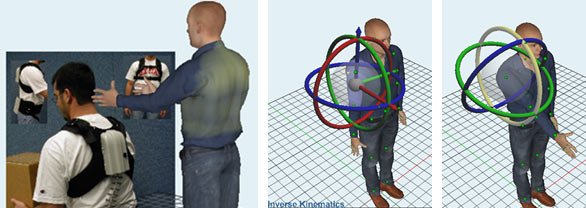

ErgoImager Pro V4
We are now working on the Beta version of ErgoImager Pro after releasing the Alpha version earlier this year.
Features include:
- Revised NIOSH Lifting Equation
- Energy Expenditure
- OWAS
- Snook & Ciriello Tables
- Mital, Nicholson & Ayoub Tables
- RULA
- REBA
- Hand strength MAE (Maximum Acceptable Efforts) & AFF (Arm Force Field) methods.
The MAE method is designed for repetitive tasks that use frequency and/or duty cycle (DC) to predict maximum acceptable efforts (MAE) as a percentage relative to maximum voluntary efforts (MVE). The AFF method predicts manual arm strength (MAS) for a wide range of body orientations, hand locations and any force direction. This method uses an artificial neural network (ANN) to predict the effects of hand location and force direction on MAS and includes a method to estimate the contribution of the arm's weight to the predicted strength.
- New Liberty MMH 2021
- Revised Strain Index (RSI), Composite Strain Index (COSI) & Cumulative Strain Index (CUSI)
- MQ 3D biomechanical model
- Interface to the 3DSSPP biomechanical model
- Import of a background digital image
- Ability to modify a mannequin's anthropometry (using various features from our HumanCAD® technology)
- Calculation and display of the mannequin's Center of Gravity
- Posture library with predefined and user defined postures
- Forward and /Inverse Kinematics movement
- Detailed anthropometry and BSIP data
Click here to learn more.
Biometrics Ltd. Products
NexGen offers a wide variety of Biometrics solutions which include the three DataLITE wireless system options as well as DataLOG and DataLINK.
DataLITE
DataLOG and DataLINK
DataLOG MWX8: Wireless (Bluetooth) connection to PC/Laptop plus on-board MicroSD card for data collection completely independent of the PC/Laptop. (Portable option). Can accept input from third party sensors.
DataLINK DLK900: USB connection to PC/Laptop with optional analog outputs.
These solutions support a variety of sensors including any combination of goniometers, torsiometers, EMG sensors, accelerometers or force sensors (dynamometer, pinchmeter, myometer, force plates and in line or s-beam load cells).
Click here to learn more.
VATS™ (Vibration Analysis ToolSet)
Our new VATS Version 4 software is a completely redesigned new software product. Some of the new features include:
- A new properties function has been added to set your default settings for the various tools.
- Customers can make multiple data selections in the raw data view. These selections can then be saved and users have the ability to load them again for further analysis.
- A new processing module for the revised ISO 2631-5 2018 standard has been added.
- Customers can now set an offset automatically.
- You can now select what data to be exported and in which formats [HTML, PDF, CSV and Plain Text (txt)].
- In the FFT panel, the FFT is now applied to the entire selected data.
- You can now change the time history window size (in seconds) for the selected algorithm (Whole Body: ISO2631-1, ACGIH and BS 6841; and Hand-Arm: ISO 5349, ACGIH).
 VATS is available for either hand-arm or whole body analysis. Hand-arm vibration analysis is based on the ISO 5349 and ACGIH standard for hand arm vibration (HAV). Whole body vibration analysis is based on the ISO 2631-1, 2631-5 (2004 and 2018), BS 6841, and ACGIH standard for whole body vibration (WBV).
Existing VATS customers can contact us to try the new version and to request upgrade pricing. There is also a no charge update available to all customers using VATS V4 pertaining to ISO 2631-5 (2018).
VATS software can be purchased as a stand-alone software product to import acceleration data to be analyzed from other systems or part of a complete solution with a multi-channel data logger, accessories and mounting accessories.
There is a no charge update available to all customers using VATS V4 pertaining to ISO 2631-5 (2018).
Click here to learn more.
Mark-10 Force Gauge Products
Series 5 and 7 force gauges and M5I and M7I indicators are now available with an increased data output rate up to 500 Hz.
A variety of EK3 and EKE force gauge kits of various capacities are available.
We have special discount offers as well as bundles with our ErgoIntelligence MMH EI-MMH-SCM: Snook & Ciriello and Mital Table analysis software valid until December 22, 2023. Please contact us for details.
Mark-10 products are known for their high quality and the industry's leading 3-year warranty.
Click here to learn more about Mark-10 Gauges.
Click here to learn more about Mark-10 Ergonomics Testing Kits.
HM-Analyzer with Ergo-Analyzer for Xsens MVN and Awinda Systems
NexGen provides complete integrated systems with MVN hardware which include our latest HM-Analyzer Version 5 for the MVN Awinda Starter and MVN Awinda systems. HM-Analyzer includes the new Ergo-Analyzer module with RULA and OWAS analysis and many new features including Range of Motion scoring for the AAOS convention.
Our powerful but easy to use HM-Analyzer software that runs on Xsens MTw Awinda systems also runs on Xsens MVN systems. It provides the user with considerable flexibility in which joints they want to analyze as well as multiple joint angle conventions, pose calibration options and a variety of analysis tools.
Please contact us to obtain quotations for an integrated solution. MVN customers can contact us for software only prices and to obtain a software trial.
Click here to learn more. |
NexGen Ergonomics, founded in 1982, is a worldwide source for software and instrumentation used in ergonomics and biomechanics for analysis, research, design and education.
